Single qubit NMR based quantum computation

In the previous post, we have sketched the basic ideas behind NMR based quantum computation. In this post, we will discuss single qubits and single qubit operations in more depth.

The rotating frame of reference

In NMR based quantum computing, quantum gates are realized by applying oscillating magnetic fields to our probe. As an oscillating field is time dependent, the Hamiltonian will be time dependent as well, making some calculations a bit more difficult. To avoid this, it is useful to pass to a different frame of reference, called the rotating frame of reference.

To explain this, let us first study a more general setting. Assume that we are looking at a quantum system with Hamiltonian H and a state vector $|\psi \rangle$ . Suppose further that we are given a unitary group, i.e. a time-dependent unitary operator

$T(t) = e^{-iAt}$

with a hermitian matrix A. We can then consider the transformed vector

$|\tilde{\psi}\rangle = T(t) |\psi \rangle$

Using the product rule and the Schrödinger equation, we can easily calculate the time derivative of this vector and obtain

$i \hbar \frac{d}{dt} |\tilde{\psi}\rangle = \hbar A |\tilde{\psi} \rangle + T(t) H |\psi\rangle = \tilde{H} |\tilde{\psi}\rangle$

with

$\tilde{H} = THT^* + \hbar A$

In other words, the transformed vector again evolves over time according to an equation which is formally a Schrödinger equation if we replace the original Hamiltonian by the transformed Hamiltonian $\tilde{H}$ .

Let us now apply this to the system describing a single nuclear spin with spin 1/2 in a constant magnetic field B along the z-axis of the laboratory system. In the laboratory frame, the Hamiltonian is then given by

$H = \omega I_z$

with the Larmor frequency $\omega$ and the spin operator

$I_z = \frac{\hbar}{2} \sigma_z$

We now pass into a new frame of reference by applying the transformation

$T(t) = \exp ( \frac{i\omega_{ref}}{\hbar} t I_z )$

with an arbitratily chosen reference frequency $\omega_{ref}$ . Geometrically, this is a rotation around the z-axis by the angle $\omega_{ref}t$ . Using the formula above and the fact that T commutes with the original Hamiltonian, we find that the transformed Hamiltonian is

$\tilde{H} = (\omega - \omega_{ref}) I_z$

This is of the same form as the original Hamiltonian, with a corrected Larmor frequency

$\Omega = \omega - \omega_{ref}$

In particular, the Hamiltonian is trivial if the reference frequency is equal to the Larmor frequency.

Intuitively, this is easy to understand. We know that the time evolution in the laboratory frame is described by a precession with the frequency $\omega$ . When we choose $\omega_{ref} = \omega$ , we place ourselves in a frame of reference rotating with the same frequency around the z-axis. In this rotating frame, the state vector will be constant, corresponding to the fact that the new Hamiltonian vanishes. If we choose a reference frequency different from the Larmor frequency, we will observe a precession with the frequency $\Omega$ .

Let us now repeat this for a different Hamiltonian – the Hamiltonian that governs the time evolution in the presence of an oscillating magnetic field. More precisely, we will look at the Hamiltonian of a rotating magnetic field (which is a good approximation for an oscillating magnetic field by an argument known as rotating wave approximation, see my notes for more details on this). In the presence of such a field, the Hamiltonian in the laboratory frame is

$H = \omega I_z + \omega_{nut} [I_x \cos (\omega_{ref}t + \Phi_p) + I_y \sin (\omega_{ref}t + \Phi_p) ]$

To calculate the Hamiltonian in the rotating frame, we have – according to the above formula – to apply the conjugation with T to each of the terms appearing in this Hamiltonian and add a correction term.

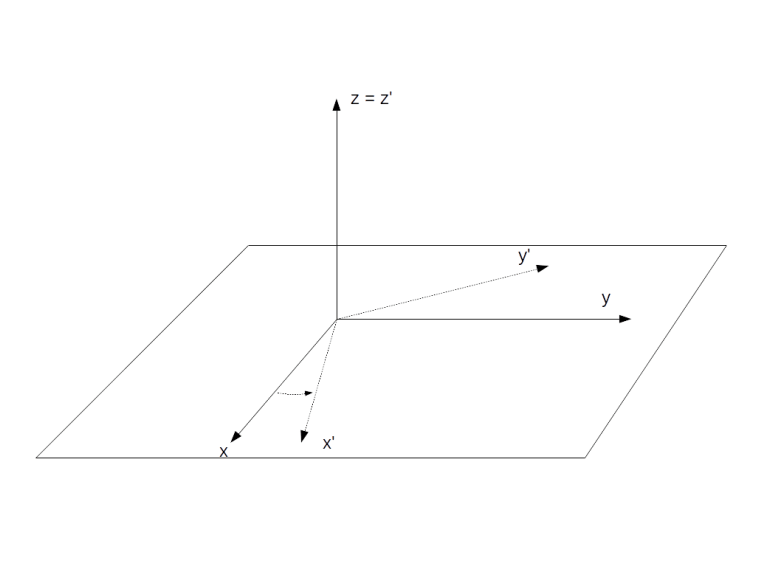

Now the transformation T is a rotation around the z-axis, and the result of applying a rotation around the z-axis to the operators I_x and I_y is well known and in fact easy to calculate using the commutation relations between the Pauli matrices. The correction term cancels the first term of the Hamiltonian as above. The transformed Hamiltonian is then given by

$\tilde{H} = \omega_{nut} [I_x \cos \Phi_p + I_y \sin \Phi_p ]$

In other words, the time dependence has disappeared and only the phase term remains. Again, this is not really surprising – if we look at a rotating magnetic field from a frame of reference that is rotating around the same axis with the same frequency, the result is a constant magnetic field.

The density matrix of a single qubit

We are now ready to formally describe a single qubit, given by all nuclei at a specific position in a system consisting of a large number of molecules. According to the formalism of statistical quantum mechanics, this ensemble is described by a 2×2 density matrix $\rho$ . The time evolution of this density matrix is governed by the Liouville-von Neumann equation

$i\hbar \frac{d}{dt} \rho = [H,\rho]$

The density matrix is a hermitian matrix with trace 1. Therefore the matrix $\rho - \frac{1}{2}$ is a traceless hermitian matrix. Any such matrix can be expressed as a linear combination of the Pauli matrices with real coefficients. Consequently, we can write

$\rho(t) = \frac{1}{2} + f(t) \cdot I$

where f is a three-vector with real coefficients and the dot product is a shorthand notation for

$f \cdot I = f_x I_x + f_y I_y + f_z I_z$

Similarly, the most general time-independent Hamiltonian can be written as

$H = \frac{1}{2} tr(H) + a \cdot I$

We can remove the trace by adding a constant, which does not change the physics and corresponds to a shift of the energy scale. Further, we can express the vector a as the product of a unit vector and a scalar. Thus the most general Hamiltonian we need to consider is

$H = \omega_{eff} n \cdot I$

with a real number $\omega_{eff}$ (the reason for this notation will become apparent in a second) and a unit vector n.

Let us now plug this into the Liouville equation. Applying the very useful general identity (which is easily proved by a direct calculation)

$[a\cdot I, b \cdot I] = i \hbar (a \times b) \cdot I$

for any two vectors a and b, we find that

$\dot{f} = - \omega_{eff} [f \times n]$

This equation is often called the Bloch equation. By splitting f into a component perpendicular to n and a component parallel to n, one can easily see that the solution is a rotation around the axis n with frequency $\omega_{eff}$ .

What is the physical interpretation of this result and the physical meaning of f? To see this, let us calculate the expectation value of the magnetic moment induced by the spin of our system. The x-component of the magnetic moment, for instance, corresponds to the observable $\gamma I_x$ . Therefore, according to the density matrix formalism, the expectation value of the x-component of the magnetic moment $\mu$ is

$\langle \mu_x \rangle = \gamma tr (\rho I_x)$

If we compute the matrix product $\rho I_x$ and use the fact that the trace of a product of two different Pauli matrices is zero, we find that the only term that contributes to the trace is the term f_x, i.e.

$\langle \mu_x \rangle = \frac{\gamma \hbar^2}{4} f_x$

Similar calculations work for the other components and we find that, up to a constant, the vector f is the net magnetic moment of the probe.

A typical NMR experiment

After all these preparations, we now have all tools at our disposal to model the course of events during a typical NMR experiment in terms of the density matrix.

Let us first try to understand the initial state of the system. In a real world experiment, none of the qubits is fully isolated. In addition, the qubits interact, and they interact with the surroundings. We can model these interactions by treating the qubits as being in contact with a heat bath of constant temperature T. According to the rules of quantum statistical mechanics, the equilibrium state, i.e. the state into which the system settles down after some time, is given by the Boltzmann distribution, i.e.

$\rho(t=0) = \frac{1}{Z} \exp (- \frac{H}{kT})$

In the absence of an additional rotating field, the Hamiltonian in the laboratory frame is given by

$H = \omega I_z$

Therefore

$\rho(t=0) = \frac{1}{Z} \exp ( \frac{-\omega}{kT} I_z)$

Using the relations

$I_z = \frac{\hbar}{2} \sigma_z$

and

$\omega = -\gamma B \sigma_z$

with the gyromagnetic moment $\gamma$ , we can write this as

$\rho(t=0) = \frac{1}{Z} \exp ( \frac{1}{2} {{\hbar \gamma B}\over{kT}} \sigma_z)$

Let us now introduce the energy ratio

$\beta = \frac{\hbar \gamma B}{kT}$

The energy in the numerator is the energy scale associated with the Larmor frequency. For a proton in a magnetic field of a few Tesla, for example, this will be in the order of 10^-25 Joule. The energy in the denominator is the thermal energy. If the experiment is conducted at room temperature, say T=300K, then this energy is in the order of 10^-21 Joule (see this notebook for some calculations). This yields a value of roughly 10^-4 for $\beta$ . If we calculate the exponential in the Boltzmann distribution by expanding into a power series, we can therefore neglect all terms except the constant term and the term linear in $\beta$ . This gives the approximation

$\rho(t=0) = \frac{1}{Z} (1 + \frac{1}{2} \beta \sigma_z)$

called the high temperature approximation. We can determine the value of Z by calculating the trace and find that Z = 2, so that

$\rho(t=0) = \frac{1}{2} + \frac{1}{4} \beta \sigma_z = \begin{pmatrix} \frac{1}{2} + \frac{\beta}{4} & 0 \\ 0 & \frac{1}{2} - \frac{\beta}{4} \end{pmatrix} = \frac{1}{2} + \frac{1}{2} \frac{\beta}{\hbar} I_z$

If we compare this to the general form of the density matrix discussed above, we find that the thermal state has a net magnetization in the direction of the z-axis (for positive $\beta$ ). This is what we expect – with our sign conventions, the energy is lowest if the spin axis is in the direction of the z-axis, so that slightly more nuclei will have their spins oriented in this direction, leading to a net magnetic moment.

To calculate how this state changes over time, we again pass to the rotating frame of reference. As the initial density matrix clearly commutes with the rotation around the z-axis, the density matrix in the rotating frame is the same. If we choose the reference frequency to be exactly the Larmor frequency, the Hamiltonian given by the static magnetic field along the z-axis vanishes, and the density matrix does not change over time.

When, however, we apply an additional pulse, i.e. an additional rotating magnetic field, for some time $\tau$ , this changes. We have already seen that in the rotating frame, this pulse adds an additional term

$\omega_{nut} (I_x \cos \Phi_p + I_y \sin \Phi_p)$

to the Hamiltonian. This has the form discussed above – a scalar times a dot product of a unit vector with the vector I = (I_x, I_y, I_z). Therefore, we find that the time evolution induced by this Hamiltonian is a rotation around the vector

$(\cos \Phi_p, \sin \Phi_p, 0)$

with the frequency $\omega_{nut}$ . If, for instance, we choose $\Phi_p = 0$ , the vector f – and thus the magnetic moment – will slowly rotate around the x-axis. If we turn off the pulse after a time $\tau$ such that

$\omega_{nut} \tau = \frac{\pi}{2}$

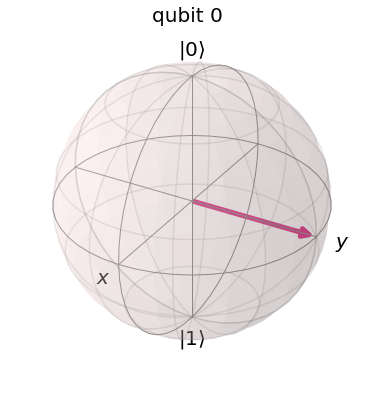

the net magnetization will be parallel to the y-axis. After the pulse has been turned off, the density matrix in the rotating frame is again constant, so the magnetic moment stays along the y-axis. In the laboratory frame, however, this corresponds to a magnetic moment which rotates with the Larmor frequency around the z-axis. This magnetic moment will induce a voltage in a coil placed in the x-y-plane which can be measured. The result will be an oscillating current, with frequency equal to the Larmor frequency. Over time, the state will slowly return into the thermal equilibrium, resulting in a decay of the oscillation.

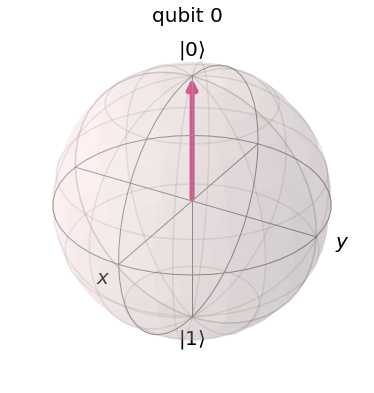

This is a good point in time to visualize what is happening. Given the explicit formulas for the density matrix derived above, it is not difficult to numerically simulate the state changes and NMR signals during an experiment as the one that we have just described (if you want to take a look at the required code, you can find a Python notebook here)

The diagram below shows the result of such a simulation. Here, we have simulated a carbon nucleus in a TCE (Trichloroethylene) molecule. This molecule – pictured below (source Wikipedia) – has two central carbon nuclei.

A small percentage of all TCE molecules in a probe will have two ¹³C nuclei instead of the more common ¹²C nuclei, which have spin 1/2 and therefore should be visible in the NMR spectrum. At 11.74 Tesla, an isolated ¹³C carbon nucleus has a Larmor precession frequency of 125 MHz. However, when the nuclei are part of a larger molecule as in our case, each nucleus is shielded from an external magnetic field by the surrounding cloud of electrons. As the electron configuration for both nuclei is different, the observed Larmor frequencies differ by a small amount known as the chemical shift.

At the start of the simulation, the system was put into a thermal state. Then, an RF pulse was applied to flip the magnetization in the direction of the x-axis, and then a sample was taken over 0.1 seconds, resulting in the following signal.

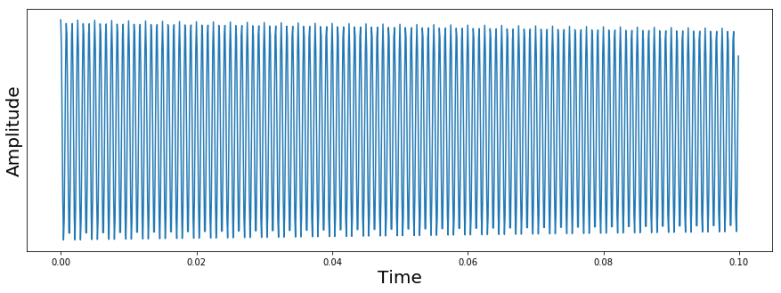

The signal that we see looks at the first glance as expected. We see an oscillating signal with an amplitude that is slowly decaying. However, you might notice that the frequency of the oscillation is clearly not 125 MHz. Instead, the period is roughly 0.001 seconds, corresponding to a frequency of 1200 Hz. The reason for this is that in an NMR spectrometer, the circuit processing the received signal will typically apply a combination of a mixer and a low pass filter to effectively shift the frequency by an adjustable reference frequency. In our case, the reference frequency was adjusted to be 1200 Hz above the Larmor frequency of the carbon nucleus, so the signal will oscillate with a frequency of 1200 Hz. In practice, the reference frequency determines a window in the frequency space in which we can detect signals, and all frequencies outside this window will be suppressed by the low pass filter.

Now let us take a look at a more complicated signal. We again place the system in the thermal equilibrium state first, but then apply RF pulses to flip the spin of both carbon nuclei into the x-axis (in a simulation, this is easy, in a real experiment, this requires some thought, as the Larmor frequencies of these two carbon nuclei differ only by a small chemical shift of 900 Hz). We then again take a sample and plot the signal. The result is shown below.

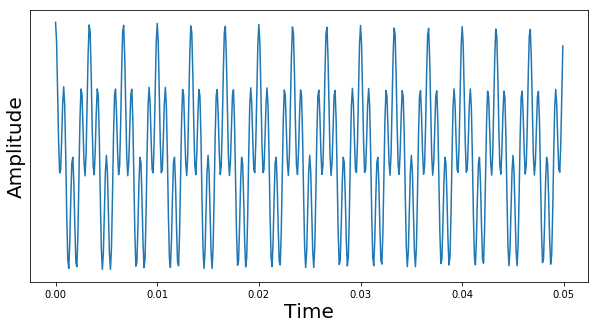

This time, we see a superposition of two oscillations. The first oscillations is what we have already seen – an oscillation with 1200 Hz, which is the difference of the chosen reference frequency and the Larmor frequency of the first carbon. The second oscillation corresponds to a frequency of roughly 300 Hz. This is the signal caused by the Larmor precession of the second spin. As we again measure the difference between the real frequency and the reference frequency, we can conclude that this frequency differs from the Larmor frequency of the first spin by 900 Hz.

In reality, the signal that we observe is the superposition of many different oscillations and is not easy to interpret – even with a few oscillations, it soon becomes impossible to extract the frequencies by a graphical analysis as we have done it so far. Instead, one usually digitizes the signal and applies a Fourier transform (or, more precisely, a discrete Fourier transform). The following diagram shows the result of applying such a DFT to the signal above.

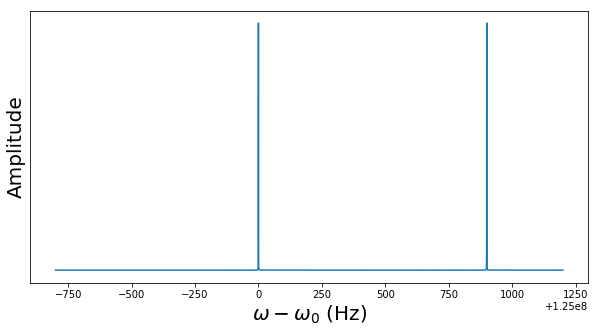

Here, we have shifted the x-axis by the difference between the Larmor frequency $\omega_0$ of the first nucleus and the reference frequency, so that the value zero corresponds to $\omega_0$ . We clearly see two peaks. The first peak at zero, i.e. at Larmor frequency $\omega_0$ , is the signal emitted by the first nucleus. The second peak is shifted by 900 Hz and is emitted by the second nucleus. In general, each nucleus will result in one peak (ignoring couplings that we will study in a later post) and the differences between the peaks belonging to nuclei of the same isotope are the chemical shifts.

Let us quickly summarize what we have learned. An ensemble of spin systems is described by a density which in turn is given by the net magnetization vector f. The result of applying a pulse to this state is a rotation around an axis given by the phase of the pulse (in fact, the phase can be adjusted to rotate around any axis in the x-y-plane, and as any rotation can be written as a decomposition of such rotations, we can generate an arbitrary rotation). The net magnetization can be measured by placing a coil close to the probe and measuring the induced voltage.

This does already look like we are able to produce a reasonable single qubit. The vector f appears to correspond – after some suitable normalization – to points on the Bloch sphere, and as we can realize rotations, we should be able to realize arbitrary single qubit quantum gates. But what about multiple qubits? Of course a molecule typically has more than one nucleus, and we could try to use additional nuclei to create additional qubits, but there is a problem – in order to realize multi-qubit gates, these qubits have to interact. In addition, we need to be able to prepare our NMR system in a useful initial state and, at the end of the computation, we need to measure the outcome. These main ingredients of NMR based quantum computing will be the subject of the next post.

Kubernetes 101 – creating pods and deployments

In the last posts, we have seen how we can set up a Kubernetes cluster on Amazons EKS platform and spin up our first nodes. Today, we will create our first workloads and see pods and deployments in action.

Creating pods

We have already introduces pods in an earlier post as the smallest units that Kubernetes manages. To create pods, there are several options. First, we can use the kubectl command line tool and simply pass the description of the pod as arguments. Second, we can use a so-called manifest file which contains the specification of the pod, which has the obvious advantage that this file can be reused, put under version control, developed and tested, according to the ideas of the “Infrastructure as a code” approach. A manifest file can either be provided in JSON format or using the YAML markup language. And of course, we can again use the Kubernetes API directly, for instance by programming against the Python API.

In this post, we will demonstrate how to create pods using manifest file in YAML format and Python scripts. We start with a YAML file which looks as follows.

apiVersion: v1
kind: Pod
metadata:
  name: naked-pod-demo
  namespace: default
spec:
  containers:
  - name: naked-pod-demo-ctr
    image: nginx

Let us go through this file step by step to understand what it means. First, this is a YAML file, and YAML is essentially a format for specifying key-value pairs. Our first key is apiVersion, with value v1. This is the first line in all manifest files and simply specifies the API version that we will use.

The next key – kind – specifies the type of Kubernetes resource that we want to access, in this case a pod. The next key is metadata. The value of this key is a dictionary that again has two keys – name and namespace. The name is the name that our pod will have. The namespace key specifies the namespace in which the pod will start (namespaces are a way to segment Kubernetes resources and are a topic for a future post, for the time being we will simply use the so-called default namespace).

The next key – spec now contains the actual specification of the pod. This is where we tell Kubernetes what our pod should be running. Remember that a pod can contain one or more application containers. Therefore there is a key containers, which, as a value, has a list of containers. Each container has a name and further attributes.

In our case, we create one container and specify that the image should be nginx. At this point, we can specify every image that we could also specify if we did a docker run locally. In this case, Kubernetes will pull the nginx image from the default docker registry and run it.

So let us now trigger the creation of a pod by passing this specification to kubectl. To do this, we use the following command (assuming that you have saved the file as naked_pod.yaml, the reason for this naming will become clear later).

kubectl apply -f naked_pod.yaml

After a few seconds, Kubernetes should have had enough time to start up the container, so let us use kubectl to check whether the node has been created.

$ kubectl get pods
NAME             READY   STATUS    RESTARTS   AGE
naked-pod-demo   1/1     Running   0          38s

Nice. Let us take a closer look at this pod. If you run kubectl get pods -o wide, kubectl will give you a bit more information on the pod, including the name of the node on which the pod is running. So let us SSH into this node. To easily log into one of your nodes (the first node in this case, change Node to 1 to log into the second node), you can use the following sequence of commands. This will open the SSH port for all instances in the cluster for incoming connections from the your current IP address. Note that we use the cluster name as a filter, so you might need to replace myCluster in the commands below by the name of your cluster.

$ Node=0
$ IP=$(aws ec2 describe-instances --output text --filters Name=tag-key,Values=kubernetes.io/cluster/myCluster Name=instance-state-name,Values=running --query Reservations[$Node].Instances[0].PublicIpAddress)
$ SEC_GROUP_ID=$(aws ec2 describe-instances  --output text --filters Name=tag-key,Values=kubernetes.io/cluster/myCluster Name=instance-state-name,Values=running --query Reservations[0].Instances[0].SecurityGroups[0].GroupId)
$ myIP=$(wget -q -O- https://ipecho.net/plain)
$ aws ec2 authorize-security-group-ingress --group-id $SEC_GROUP_ID --port 22 --protocol tcp --cidr $myIP/32
$ ssh -i ~/eksNodeKey.pem ec2-user@$IP

Use this – or your favorite method (if you use my script up.sh to start the cluster, it will already open ssh connections to both nodes for you) – to log into the node on which the pod has been scheduled by Kubernetes and execute a docker ps there. You should see that, among some management containers that Kubernetes brings up, a container running nginx appears.

Now let us try a few things. First, apply the YAML file once more. This will not bring up a second pod. Instead, Kubernetes realizes that a pod with this name is already running and tells you that no change has been applied. This makes sense – in general, a manifest file specifies a target state, and we are already in the target state, so there is no need for action.

Now, on the EKS worker node on which the pod is running, use docker kill to actually stop the container. Then wait for a few seconds and do a docker ps again. Surprisingly, you will see the container again, but with a different container ID. What happened?

The answer is hidden in the logfiles of the component of Kubernetes that controls a single node – the kubelet. On the node, the kubelet is started using systemctl (you might want to verify this in the AWS provided bootstrap.sh script). So to access its logs, we need

$ journalctl -u kubelet

Close to the end of the logfile, you should see a line stating that … container … is dead, but RestartPolicy says that we should restart it. In fact, the kubelet constantly monitors the running containers and looks for deviations from the target state. The restart policy is a piece of the specification of a pod that tells the kubelet how to handle the case that a container has died. This might be perfectly fine (for batch jobs), but the default restart policy is Always, so the the kubelet will restart our container.

This is nice, but now let us simulate a more drastic event – the node dies. So on the AWS console, locate the node on which the pod is running and terminate the pod.

After a few seconds, you will see that a new node is created, thanks to the AWS auto-scaling group that controls our nodes. However, if you check the status of the pods using kubectl get pods, you will see that Kubernetes did not reschedule the pod on a different node, nor does it restart the pod once the replacement node is up and running again. So Kubernetes takes care (via the kubelet) of the containers that belong to a pod on a per-node level, but not on a per-cluster level.

In productions, this is of course typically not what you want – instead, it would be nice if Kubernetes could monitor the pods for you and restart them automatically in case of failure. This is what a deployment does.

Replica sets and deployments

A deployment is an example for a more general concept in Kubernetes – controllers. Basically, this is a component that constantly monitors the cluster state and makes changes if needed to get back into the target state. One thing that a deployment does is to automatically bring up a certain number of instances called replicas of a Docker image and distribute the resulting pods across the cluster. Once the pods are running, the deployment controller will monitor them and take action of the number of pods running deviates from the desired number of pods. As an example, let us consider the following manifest file.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: alpine
spec:
  selector:
    matchLabels:
      app: alpine
  replicas: 2
  template:
    metadata:
      labels:
        app: alpine
    spec:
      containers:
        - name: alpine-ctr
          image: httpd:alpine

The first line is specifying the API version as usual (though we need to use a different value for the API version, the additional apps is due to the fact that the Deployment API is part of the API group apps). The second line designates the object that we want to create as a deployment. We then again have a name which is part of the metadata, followed by the actual specification of the deployment.

The first part of this specification is the selector. To understands its role, recall that a deployment is supposed to make sure that a specified number of pods of a given type are running. Now, the term “of a given type” has to be made precise, and this is what the selector is being used for. All pods which are created by our deployment will have a label with key “app” and value “alpine”. The selector field specifies that all pods with that label are to be considered as pods controlled by the deployment, and our controller will make sure that there are always exactly two pods with this label.

The second part of the specification is the template that the deployment uses to create the pods controlled by this deployment. This looks very much like the definition of a pod as we have seen it earlier. However, the label that is specified here of course needs to match the label in the selector field (kubectl will actually warn you if this is not the case).

Let us now delete our existing pod, run this deployment and see what is happening. Save the manifest file as deployment.yaml, apply it and then list the running nodes.

$ kubectl delete -f naked_pod.yaml
$ kubectl apply -f deployment.yaml
deployment.apps/alpine created
$ kubectl get pods
NAME                      READY   STATUS    RESTARTS   AGE
alpine-8469fc798f-rq92t   1/1     Running   0          21s
alpine-8469fc798f-wmsqc   1/1     Running   0          21s

So two pods have been created and scheduled to nodes of our cluster. To inspect the container further, let us ask kubectl to provide all details as JSON and use the wonderful jq to process the output and extract the container information from it (you might need to install jq to run this).

$ kubectl get pods --output json | jq ".items[0].spec.containers[0].image"
"httpd:alpine"

So we see that the pods and the containers have been created according to our specification and run the httpd:alpine docker image.

Let us now repeat our experiment from before and stop one of the node. To do this, we first extract the instance ID of the first instance using the AWS CLI and then use the AWS CLI once more to stop this instances.

$ instanceId=$(aws ec2 describe-instances --output text --filters Name=tag-key,Values=kubernetes.io/cluster/myCluster Name=instance-state-name,Values=running --query Reservations[0].Instances[0].InstanceId)
$ aws ec2 terminate-instances --instance-ids $instanceId

After some time, Kubernetes will find that the instance has died, and if you run a kubectl get nodes, you will find that the node has disappeared. If you now run kubectl get nodes -o wide, however, you will still find two pods, but now both are running on the remaining node. So the deployment controller has replaced the pod that went down with our node by a new pod on the remaining node. This behaviour is in fact not realized by the deployment, but by the underlying ReplicaSet. We could also create a replica set directly, but a deployment offers some additional features, like the possibility to run a rolling upgrade automatically.

Creating deployments in Python

Having discussed how to create a deployment from a YAML file, let us again do the same thing in Python. The easiest approach is to walk our way upwards through the YAML file. After the usual preparations (imports, loading the configuration), we therefore start with the specification of the container.

import client
container = client.V1Container(
              name="alpine-ctr",
              image="httpd:alpine")

This is similar to our YAML file – in each pod, we want to run a container with the httpd:alpine image. Having the container object, we can now create the template section.

template = client.V1PodTemplateSpec(
        metadata=client.V1ObjectMeta(
                   labels={"app": "alpine"}),
        spec=client.V1PodSpec(containers=[container]))

Again, note the label that we will use later to select the pods that our deployment controller is supposed to watch. Now we put the template into the specification part of our controller.

selector = client.V1LabelSelector(
              match_labels={"app" : "alpine"})
spec = client.V1DeploymentSpec(
        replicas=2,
        template=template,
        selector=selector)

And finally, we can create the actual deployment object and ask Kubernetes to apply it – the complete Python script is available for download here).

deployment = client.V1Deployment(
       api_version="apps/v1",
       kind="Deployment",
       metadata=client.V1ObjectMeta(name="alpine"),
       spec=spec)

apps.create_namespaced_deployment(
              namespace="default", body=deployment)

This completes our post for today. We now know how to create pods and deployments to run Docker images in our cluster. In the next few posts, we will look at networking in Kubernetes – services, load balancers, ingress and all that.

Bulk quantum computing with nuclear spin systems

The theoretical foundations of universal quantum computing were essentially developed in the nineties of the last century, when the first native quantum algorithms and quantum error correction were discovered. Since then, physicists and computer scientists have been working on physical implementations of quantum computing. One of the first options that moved into the focus was to use a technology known as nuclear magnetic resonance (NMR) to develop universal quantum computers. In this post, we give a brief overview of NMR based quantum computing and prepare to dive into some advanced topics in the next few posts.

Introduction to NMR

Nuclear magnetic resonance is not a new technology. It was already developed to a high degree when quantum computation was initially discussed, and was therefore a natural choice for first implementations.

So what is NMR? Recall that all matter (as we know it) consists of molecules which, in turn, are compounds of atoms. Each atom consists of a nucleus and a cloud of electrons.

A nucleus is itself not an elementary particle, but is a composite system, formed by protons and neutrons (which again are not elementary but consist of quarks). As every elementary particle, each constituent of a nucleus has a spin degree of freedom. These spins add up to a total spin. Of course, the spin depends on the quantum mechanical state of the nucleus, but typically, the energy gap between the ground state and the first excited state is so high that at room temperature, it is a good approximation to assume that the spin of the nucleus is the ground state spin. The value of this spin of course depends on the structure of the nucleus. Some nuclei, like deuterium, have spin one, some – like ¹²C have spin zero, some like ¹³C have spin 1/2, and some have higher spins.

Of course the nuclear spin interacts with an external magnetic field. The strength of this interaction is determined by the coupling between the magnetic field and the spin which is expressed by the gyromagnetic moment of the nucleus.

Now suppose we are given a probe of a substance with nuclear spin 1/2 that is subject to an external field along some axis, say the z-axis. Let us simplify the discussion a bit by looking at a single nucleus only and ignoring all spatial degrees of freedom. The nuclear spin is then described by a two-level system, i.e. a qubit. The Hamiltonian of this system is

$H = - \frac{\hbar}{2} \gamma B \sigma_z$

where $\gamma$ is the gyromagnetic moment, B is the magnetic field in the z-direction and $\sigma_z$ is the usual Pauli Z-operator, i.e. the Hamiltonian is simply a multiple of the Pauli Z operator. Consequently, the time evolution operator is

$U(t) = \exp \left( - \frac{i}{\hbar} H t \right) = \exp \left( - \omega i \frac{\hbar}{2} \sigma_z \right)$

with $\omega = - \gamma B$ . Thus, on the Bloch sphere, the time evolution is a rotation around the z-axis with frequency $\omega$ . This rotation is called the Larmor precession and the frequency is called the Larmor frequency. For typical nuclei and fields, the Larmor frequency is in the order of a few hundred MHz.

Let us now suppose that the spin is originally in the ground state, i.e. pointing to the north pole of the Bloch sphere.

What happens if we now apply an external additional magnetic pulse? The answer will obviously depend on the frequency and direction of the pulse. A detailed analysis that we will carry out in a later post shows that if the frequency of the pulse is equal to the Larmor frequency, the effective Hamiltonian during the pulse (in a rotating frame of reference) is proportional to the Pauli X matrix. Therefore the time evolution operator during the pulse corresponds to a rotation around the X-axis. If we time the pulse correctly so that the angle of this rotation is $\frac{\pi}{2}$ , then the nuclear spin will flip into a direction perpendicular to the z-axis.

After the pulse has completed, the time evolution is now again given by the rotation around the z-axis with the Larmor frequency. Consequently, the spin axis will start to precess around the z-axis. This spin precession represents a rotating magnetic moment and creates an oscillating magnetic field which in turn can be detected by placing a coil close the probe so that the rotating field will induce a voltage in the coil. Of course, the frequency of the observed signal will be that of the rotation, i.e. the Larmor frequency of the nucleus in question. We therefore find that we obtain a resonance peak at the Larmor frequency if we slowly vary the frequency of the external pulse.

In a probe that contains several different types of nuclei, we will observe more than one resonance peak – one at the Larmor frequency of each of the involved nuclei. The location and relative strength of these peaks can be used to determine the nuclei that make up the probe, and can even yield insights into the interactions between the nuclei and therefore the structure of the molecule. This technique is called nuclear magnetic resonance (NMR).

How NMR can be used for quantum computation

This description of the NMR process is on a very heuristic level, but it can be made precise (and we will look at a few more details in the next few posts). But let us take this for granted for today and let us discuss how this technology can be applied to implement a universal quantum computer.

At the first glance, this looks like a perfect match. If we pick a nucleus like ¹³C which has spin 1/2, the spin degree of freedom is described by a two-level system which makes for a perfect qubit. We have already indicated above that rotations on the Bloch sphere, i.e. one-qubit operations, can be realized by applying correctly timed magnetic fields. Given that the NMR technology is already highly developed, it appears that NMR should be a good candidate for an implementation.

However, there are few subtleties that we have ignored. First, we have not yet discussed multi-qubit systems. Of course, in a typical molecule, there is more than one nucleus. Not all nuclei have spin 1/2, but for some molecules, we will find several spin 1/2 nuclei which could serve as qubits. In one of the first applications of NMR to quantum computing (see [3]) for instance, a custom designed molecule was chosen to represent five qubits. Of course, this method is difficult to scale if we want to build systems with more than 20 or 50 qubits, but for a low number of qubits, it has been demonstrated to work.

Another problem which we have largely ignored so far is that of course, the probe that we use consists of a very large number of molecules. When we place this probe in our external magnetic field, the spin axis of the individual nuclei will not point all in the same direction, but instead we expect a random pattern of spin orientations. How can we then prepare the system in a well defined initial state? And how can we avoid that the individual signals created by each qubit cancel each other completely because of the random orientation of the spin axis? Of course we could try to cool down the system to a very low temperature to force all spin nuclei into the ground state, but this would make dealing with the system difficult and take very long. A solution to this problem was presented in [4] and [5] – it turns out that even though it appears almost impossible to prepare the system in a pure state, one can prepare it in a state which has properties similar to a pure state and is sufficient to do quantum computation.

In fact, the NMR technology quickly turned into the technology of choice for the first experimental verifications of quantum algorithms due to the availability of high-resolution NMR spectrometers and the many years of experience in the field. The first-ever factorization of an integer on a quantum computer using Shor’s algorithm (albeit a toy version which only works because the result was known upfront, see also my previous post on realizing Shor’s algorithm with Qiskit) was done on an NMR computer (see [6]). In recent years, however, other technologies like superconducting qubits and ion traps have moved more into the focus of the various research groups. Nevertheless, NMR based quantum computing is worth being studied as it illustrates many of the basic principles of the field.

This completes our short overview of NMR based quantum computation. In the next few posts, we will dig deeper into some of the questions raised above, starting with a more precise description of the physics underlying a single qubit NMR based quantum computation.

References

1. M.H. Levitt, Spin dynamics – basics of nuclear magnetic resonance, John Wiley & Sons, 2008
2. D.P. DiVincenzo, The Physical Implementation of Quantum Computation, arXiv:quant-ph/0002077
3. L.M.K. Vandersypen et. al., Experimental realization of order-finding with a quantum computer, arXiv:quant-ph/0002077
4. D.G. Cory, A.F. Fahmy, T.F. Havel, Ensemble Quantum Computing by NMR Spectroscopy, Proceedings of the National Academy of Sciences of the
United States of America, Vol. 94, No. 5 (Mar. 4, 1997), pp. 1634–1639
5. N.A. Gershenfeld, I.L Chuang, Bulk Spin-Resonance Quantum Computation, Science Vol. 275, Jan. 1997
6. L.M.K. Vandersypen et. al., Experimental realization of Shor’s quantum factoring algorithm using nuclear magnetic resonance, Nature Vol. 414, Dec. 2001

Python up an EKS cluster – part II

In the last post, we have seen how Python can be used to control the generation of an EKS cluster. However, an EKS cluster without any worker nodes – and hence without the ability to start pods and services – is of very limited use. Today, we therefore take a look at the process of adding worker nodes.

Again, we roughly follow the choreography of Amazons Getting started with EKS guide, but instead of going through the individual steps using the console first, we start using the API and the Python SDK right away.

This description assumes that you have started an EKS cluster as described in my last post. If not, you can do this by running the create_cluster Python script that executes all necessary steps.

Essentially, we will do two things. First, we will create an AWS Auto-Scaling group that we will use to manage our worker nodes. This can be done using the AWS API and the Python SDK. Part of this setup will be a new role, that, in a second step, we need to make known to Kubernetes so that our nodes can join the cluster. This will be done using the Kubernetes API. Let us now look at each of these steps in turn.

Creating an auto-scaling group

An auto-scaling group is essentially a group of EC2 instances that are combined into one management unit. When you set up an auto-scaling group, you specify a scaling policy and AWS will apply that policy to make sure that a certain number of instances is automatically running in your group. If the number of instances drops below a certain value, or if the load increases (depending on the policy), then AWS will automatically spin up new instances for you.

We will use AWS CloudFormation to set up the auto-scaling group, using the template referenced in the “Getting started” guide. This is not an introduction into CloudFormation, but it is instructive to look at this template, stored at this URL.

If you look at this file, you will recognize a few key elements. First, there are parameters whose values we will have to provide when we use the template. These parameters are

A unique name for the node group
The name of an SSH key pair that we will later use to log into our nodes. I recommend to create a separate key pair for this, and I will assume that you have done this and that this key pair is called eksNodeKey
An instance type that AWS will use to spin up nodes
The ID of an AMI image that will be used to spin up the nodes. In this tutorial, we will use Kubernetes v1.11 and the specific AWS provided AMIs which are listed in the Getting started guide. I work in the region eu-frankfurt-1, and will therefore use the AMI ID ami-032ed5525d4df2de3
The minimum, maximum and desired size of the auto-scaling group. We will use one for the minimum size, two for the desired size and three for the maximum size, so that our cluster will come up with two nodes initially
The size of the volume attached to each node – we will not provide a value for this and stick to the default (20 GB at the time of writing)
In addition, we will have to supply the VPC, the subnets and the security group that we used before

In addition to the parameters, the CloudFormation template contains a list of resources that will be created. We see that in addition to several security groups and the auto scaling group, a IAM role called the node instance role and a corresponding instance profile is created. This is the role that the nodes will assume to interact with the Kubernetes master, and behind the scenes, the AWS IAM authenticator will be used to map this IAM role to a Kubernetes user, so that the nodes can authenticate themselves against the Kubernetes API. This requires some configuration, more precisely a mapping between IAM roles and Kubernetes users, which we will set up in our second steps in the next section.

So how do we apply this cloud formation template? Again, the AWS API comes to the rescue. It provides an API endpoint (client) for CloudFormation which has a method create_stack. This method expects a Python data structure that contains the parameters that we want to use, plus the URL of the cloud formation template. It will then take the template, apply the parameters, and create the resources defined in the template.

Building the parameter structure is easy, assuming that you have already stored all configuration data in Python variables (we can use the same method as in the last post to retrieve cluster data like the VPC ID). The only tricky part is the list of subnets. In CloudFormation, a parameter value that is a list needs to be passed as a comma separated list, not as a JSON list (it took me some failed attempts to figure out this one). Hence we need to convert our list of subnets into CSV format. The code snippet to set up the parameter map then looks as follows.

params = [
  {'ParameterKey' : 'KeyName' ,
   'ParameterValue' : sshKeyPair },
  {'ParameterKey' : 'NodeImageId' ,
   'ParameterValue' : amiId },
  {'ParameterKey' : 'NodeInstanceType' ,
   'ParameterValue' : instanceType },
  {'ParameterKey' : 'NodeAutoScalingGroupMinSize' ,
   'ParameterValue' : '1' },
  {'ParameterKey' : 'NodeAutoScalingGroupMaxSize' ,
   'ParameterValue' : '3' },
  {'ParameterKey' : 'NodeAutoScalingGroupDesiredCapacity' ,
   'ParameterValue' : '2' },
  {'ParameterKey' : 'ClusterName' ,
   'ParameterValue' : clusterName },
  {'ParameterKey' : 'NodeGroupName' ,
   'ParameterValue' : nodeGroupName },
  {'ParameterKey' : 'ClusterControlPlaneSecurityGroup' ,
   'ParameterValue' : secGroupId },
  {'ParameterKey' : 'VpcId' ,
   'ParameterValue' : vpcId },
  {'ParameterKey' : 'Subnets' ,
   'ParameterValue' : ",".join(subnets) },
]

Some of the resources created by the template are IAM resources, and therefore we need to confirm explicitly that we allow for this. To do this, we need to specify a specific capability when calling the API. With that, our call now looks as follows.

cloudFormation = boto3.client('cloudformation')
cloudFormation.create_stack(
  StackName = stackName,
  TemplateURL = templateURL,
  Parameters = params,
  Capabilities = ['CAPABILITY_IAM'])

Here the template URL is the location of the CloudFormation template provided above, and stack name is some unique name that we use for our stack (it is advisable to include the cluster name, so that you can create and run more than one cluster in parallel).

When you run this command, several things will happen, and it is instructive to take a look at the EC2 console and the CloudFormation console while the setup is in progress. First, you will find that a new stack appears on the CloudFormation console, being in status “In Creation”.

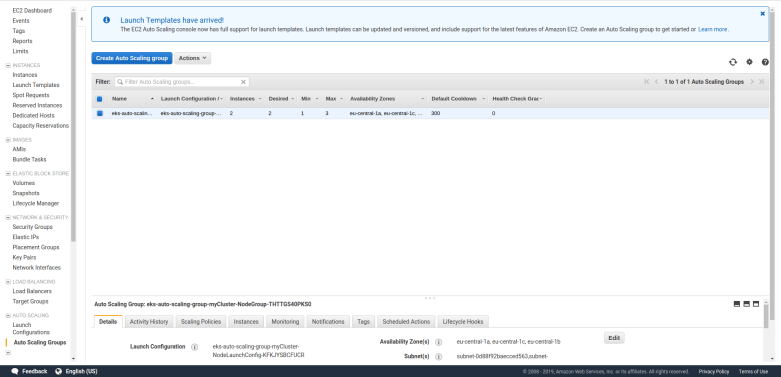

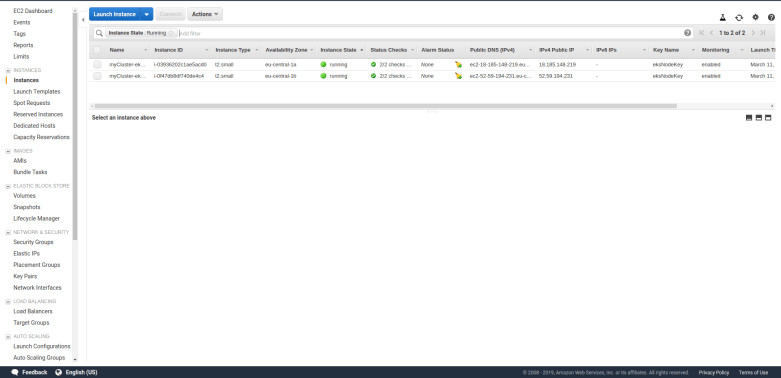

Second, the EC2 console will display – after a few seconds – a newly created auto scaling group, with the parameters specified in the template, and a few additional security groups.

And when you list your instances, you will find that AWS will spin up two instances of the specified type. These instances will come up as usual and are ordinary EC2 instances.

Remember that we specified a key pair when we created the auto-scaling group? Hopefully, you did save the PEM file – if yes, you can now SSH into your nodes. For that purpose, you will have to modify the security group of the nodes and open the SSH port for inbound traffic from your own network. Once this has been done, you can simply use an ordinary SSH command to connect to your machines.

$ ssh -i eksNodeKey.pem ec2-user@18.197.140.230

where of course you need to replace 18.197.140.230 with whatever public IP address the instance has. You can now inspect the node, for instance doing docker ps to see which docker containers are already running on the node, and you can use ps ax to see which processes are running.

Attaching the auto-scaling group to Kubernetes

At this point, the nodes are up and running, but in order to register with Kubernetes, they need to talk to the Kubernetes API. More specifically, the kubelet running on the node will try to connect to the cluster API and therefore act as a Kubernetes client. As every Kubernetes client, this requires some authorization. This field is a bit tricky, but let me try to give a short overview (good references for what follows are the documentation of the AWS IAM authenticator, this excellent blog post, and the Kubernetes documentation on authorization).

Kubernetes comes with several possible authentication methods. The method used by EKS is called bearer token. With this authentication method, a client request contains a token in its HTTPS header which is used by Kubernetes to authorize the request. To create and verify this token, a special piece of software is used – the AWS IAM authenticator. This utility can operate in client mode – it then generates a token – and in server mode, where it verifies a token.

The basic chain of events when a client like kubectl wants to talk to the API is as follows.

The client consults the configuration file ~/.kube/config to determine the authorization method to be used
In our case, this configuration refers to the AWS IAM authenticator, so the client calls this authenticator
The authenticator looks up the current AWS credentials, uses them to generate a token and returns that token to the client
The client sends the token to the API endpoint along with the request
The Kubernetes API server extracts the token and invokes the authenticator running on the Kubernetes management nodes (as a server)
The authenticator uses the token to determine the IAM role used by the client and to verify it
It then maps the IAM role to a Kubernetes user which is then used for authorization

You can try this yourself. Log into one of the worker nodes and run the command

$ aws sts get-caller-identity

This will return the IAM role ARN used by the node. If you compare this with the output of the CloudFormation stack that we have used to create our auto-scaling group, you will find that the node assumes the IAM role created when our auto-scaling group was generated. Let us now verify that this identity is also used when the AWS IAM authenticator creates a token. For that purpose, let us manually create a token by running – still on the node – the command

$ aws-iam-authenticator token -i myCluster

This will return a dictionary in JSON format, containing a key called token. Extract the value of this key, this will be a base64 encoded string starting with “k8s-aws-v1”. Now, fortunately the AWS authenticator also offers an operation called verify that we can use to extract the IAM role again from the token. So run

$ aws-iam-authenticator verify -i myCluster -d ""k8s-aws-v1..."

where the dots represent the full token extracted above. As a result, the authenticator will print out the IAM role, which we again recognize as the IAM role created along with the auto-scaling group.

Essentially, when the kubelet connects to the server and the AWS IAM authenticator running on the server receives the token, it will use the same operation to extract the IAM role. It then needs to map the IAM role to a Kubernetes role. But where does this mapping information come from?

The answer is that we have to provide it using the standard way to store configuration data in a Kubernetes cluster, i.e. by setting up a config map.

Again, Amazon provides a template for this config map in YAML format, which looks as follows.

apiVersion: v1
kind: ConfigMap
metadata:
  name: aws-auth
  namespace: kube-system
data:
  mapRoles: |
    - rolearn:
      username: system:node:{{EC2PrivateDNSName}}
      groups:
        - system:bootstrappers
        - system:nodes

Thus our config map contains exactly one key-value pair, with key mapRoles. The value of this key is again a string in YAML format (note that the pipe is an escape character in YAML which instructs us to treat the next lines as a multi-line string, not as a list). Of course, we have to replace the placeholder by the ARN of the role that we want to map, i.e. the role created along with the auto-scaling group.

To create this config map, we will have to use the Python SDK for Kubernetes that will allow us to talk to the Kubernetes API. To install it, run

$ pip3 install kubernetes

To be able to use the API from within our Python script, we of course have to import some components from this library and read our kubectl configuration file, which is done using the following code.

from kubernetes import client, config
config.load_kube_config()
v1 = client.CoreV1Api()

The object that we call v1 is the client that we will use to create and submit API requests. To create our config map, we first need to instantiante an object of the type V1ConfigMap and populate it. Assuming that the role ARN we want to map is stored in the Python variable nodeInstanceRole, this can be done as follows.

body = client.V1ConfigMap()
body.api_version="v1"
body.metadata = {}
body.metadata['name'] = "aws-auth"
body.metadata['namespace'] = "kube-system"
body.data = {}
body.data['mapRoles'] = "- rolearn: " + nodeInstanceRole +  "\n  username: system:node:{{EC2PrivateDNSName}}\n  groups:\n    - system:bootstrappers\n    - system:nodes\n"

Finally, we call the respective method to actually create the config map.

v1.create_namespaced_config_map("kube-system", body)

Once this method completes, our config map should be in place. You can verify this by running kubectl on your local machine to describe the config map.

$ kubectl describe configMaps aws-auth -n kube-system
Name:         aws-auth
Namespace:    kube-system
Labels:
Annotations:

Data
====
mapRoles:
----
- rolearn: arn:aws:iam::979256113747:role/eks-auto-scaling-group-myCluster-NodeInstanceRole-HL95F9DBQAMD
  username: system:node:{{EC2PrivateDNSName}}
  groups:
    - system:bootstrappers
    - system:nodes

Events:

If you see this output, we are done. The EC2 instances should now be able to connect to the Kubernetes master nodes, and when running

$ kubectl get nodes

you should get a list displaying two nodes. Congratulations, you have just set up your first Kubernetes cluster!

The full Python script which automates these steps can as usual be retrieved from GitHub. Once you are done playing with your cluster, do not forget to delete everything again, i.e. delete the auto-scaling group (which will also bring down the nodes) and the EKS cluster to avoid high charges. The best approach to clean up is to delete the CloudFormation stack that we have used to bring up the auto-scaling group (in the AWS CloudFormation console), which will also terminate all nodes, and then use the AWS EKS console to delete the EKS cluster as well.

This completes our post for today. In the next post in this series, we will learn how we can actually deploy containers into our cluster.

Quantum error correction: the surface code

In my previous post on quantum error correction, we have looked at the toric code which is designed for a rather theoretical case – a grid of qubits on a torus. In reality, qubits are more likely to be arranged in a planar geometry. Luckily, a version of the toric codes that works well in a planar geometry exists – the surface code.

Planar codes and their stabilizers

Recall that the starting point for the toric code was a lattice L with periodic boundary conditions so that the geometry of the lattice becomes toroidal, which gave us a four-dimensional code space.

If we want to use this code in planar setting, it is clear that we somehow have to modify the boundary conditions. What happens if we simply drop it? A short calculation using a bit of algebraic topology shows that in this case, the code space collapses to a one-dimensional code space which is not enough to hold a logical qubit. So we need some a more sophisticated boundary condition. The solution found in [1] is to use two types of boundaries.

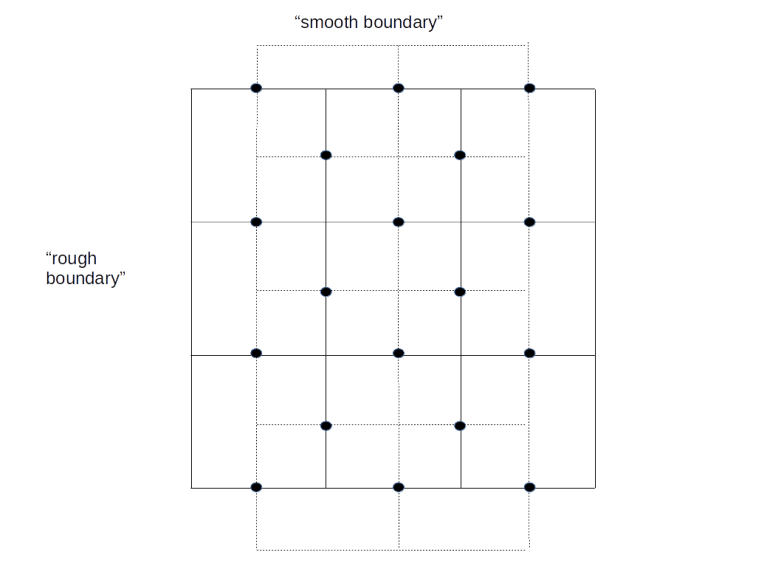

Look at the diagram above. The solid lines form a lattice L with two types of boundary – a “smooth” boundary at the top and the bottom and a “rough boundary” left and right (ignore the dashed lines for a moment, we will explain their meaning in a second). We again place qubits on the edges of the lattice, but for the boundary, we only place qubits (again indicated by black dots) on the edges which are part of the smooth boundary.

As for the case of a toric code, we can again create a second lattice called the dual lattice whose vertices are the center points of the faces of L and whose edges are perpendicular to the edges of L. This dual lattice is indicated by the dashed lines in our diagram. Again, some edges of the dual lattice carry qubits and others do not, so we have a smooth and a rough boundary as well (note that the smooth boundary of L gives raise to the rough boundary of the dual lattice and vice versa).

Again a path along the edges, i.e. a set of edges, is an element of a group, the group of one chains. If we only allow the edges that are not part of the rough boundary, i.e. the edges that carry qubits, we obtain a subgroup which is known to topologists as the group of one chains relative to the rough boundary – again I will strive to keep this post free from too much algebraic topology and refer the reader to my notes for more details and a more precise description.

As for the toric code, every such relative one-chain c gives raise to a operators X_c and Z_c, obtained by letting X respectively Z act on any qubit crossed by the chain. Similarly, a co-chain is a path in the dual lattice, i.e. a path perpendicular to the edges of the lattice L.

In the literature, the lattice and its dual are typically visualized differently, namely with all edges that do not carry qubits removed, as in the following diagram.

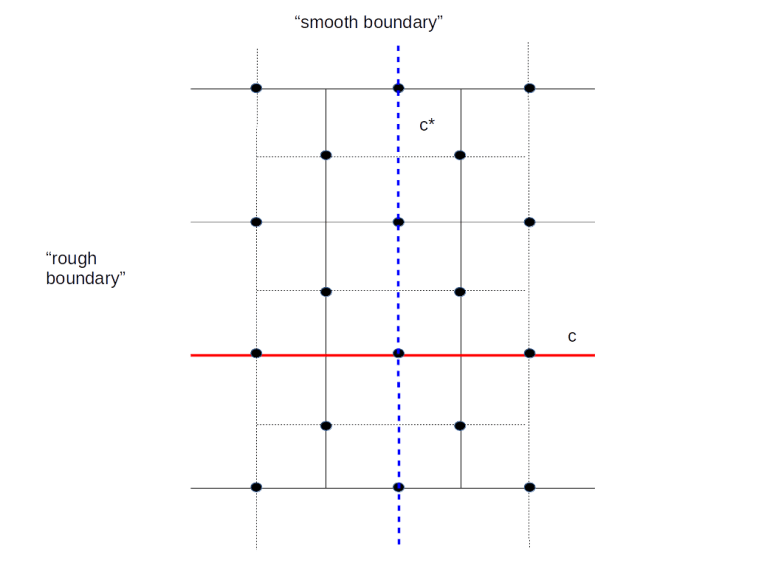

Here we have removed the rough boundary at the left and right of the lattice and the same for the dual lattice. The red line is a relative one chain. Note that this one-chain is “open-ended”. Its boundary would be in the (removed) rough boundary. In the relative version of the chain complex, its boundary is zero, hence this is the equivalent to a closed loop in the toric geometry. Similarly, the blue line represents a co-chain, i.e. a chain in the dual lattice, which has zero boundary in the dual lattice.

We can now proceed as for the toric code. For each vertex v, there is a vertex operator X_v, which is the product of the Pauli X operators acting on the qubits sitting on the edges touching the vertex (which are four qubits in the interior of the lattice and three qubits if the vertex is sitting on the smooth boundary). For each face f, we again have a face operator Z_f, acting as a Pauli Z operator on the four qubits sitting on the boundary edges of the face – again, if the face is located at the rough boundary, there are only three operators. These operators again commute with each other and create an abelian subgroup S. The code space T_S created by this group, i.e. the space of all states left invariant by all face operators and all vertex operators, now turns out to be two-dimensional and is thus encoding one logical qubit. The code obtained in this way is called the surface code.

Again, there are logical Pauli operators. In fact, these are the operators created by the chains marked in the diagram above – the Z operator Z_c associated with the one chain c and the X operator X_c* associated with the co-chain c*. The fact that these operators commute with each operator in S is related to their boundaries being zero (in the sense described above, i.e. the are open-ended) and the fact that they anti-commute is expressed geometrically by the fact that they intersect exactly once.

Thus we obtain a logical qubit and logical Pauli operators that act on this qubit. What about measurements? As for the toric code, we can measure our (data) bits located at the edges by adding measurement qubits. To measure a face operator Z_f, we can place an additional measurement qubit in the center of the face and use this qubit as an ancilla in our measurement circuit below.

Similarly, to measure the vertex operator X_v for a vertex v, we place an additional measurement qubit at the vertex and use a similar circuit to transfer the result of the measurement into this qubit, as we did it for the toric code. The only difference to the case of a toric code is again that if a vertex or face is adjacent to only three qubits as it is located close to the boundary, we only include those qubits in our measurement. We therefore obtain the following arrangement of qubits, were black dots are data qubits, white dots are ancilla qubits used for the measurements and a letter X or Z indicates the action of a Pauli operator (this is, up to a switch of black and white, the graphical representation of a surface code used in [2]).

For instance, a white dot surrounded by Z’s indicates a face and the corresponding face operator Z_f, together with the black data qubits on which the face operator acts. At the same time, the white dot is the location of a measurement qubit used to measure Z_f. Similarly, a white dot surrounded by X’s indicates both a vertex operator and a data qubit to measure the vertex operator.

Of qubits and holes

So far we have seen how the surface code can be used to encode a single logical qubit in a whole array of physical qubits. In practice, however, we need more than one qubit. We could of course try to arrange the planar surfaces in a stack, with qubits on each plane interacting with the qubits above and below, and then use some variant of quantum teleportation to establish connectivity between the logical qubits. However, there is a different way – we can realize more than one logical qubit on one array of physical qubits (this is only one option – as of today, there are many different approaches built upon similar ideas, like color codes or lattice surgery – see [5] and [6] for a discussion of some alternatives).

The idea is simple. We have obtained our code space as the intersection of the subspaces given by constraints, where each face operator and each vertex operator add one (linear) constraint. To obtain a larger code space, all we have to do is to drop a few of these constraints again!

To understand how this works, we first have to understand how the surface code is usually used in practice ([2]). We first put the system into an initial, potentially unknown state. We then perform a series of measurements of all stabilizers. This will force the state into a simultaneous eigenstate of all the stabilizer operators.

Now, the eigenvalues will typically not all be one. We therefore have to apply corrections to move our state into the code space (or we could as well keep track of the error syndrome and perform the corrections in software when we measure) – this is exactly the same process as if we had found errors during the later computation. In other words, we do a first round of error correction.

We now start our quantum algorithm. After each step of the algorithm, we perform another round of measurements of the stabilizers to detect any errors that might have occurred. Again, we could now correct the errors, or alternatively keep track of them as well and correct the final measurements if needed. In this way, a computation with a surface code is essentially a periodic measurement of all stabilizers in repeating cycles followed by an (actual or virtual) error correction, and logical operations executed between any two subsequent cycles.

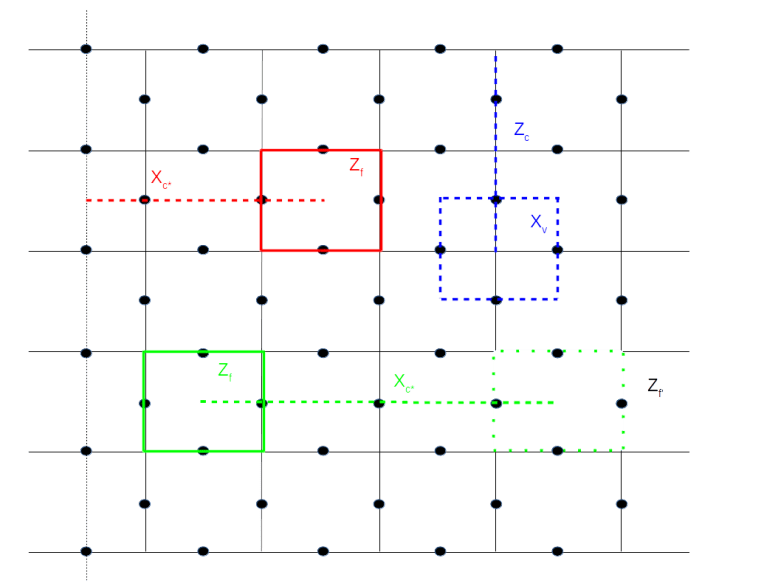

Now let us see what happens when we modify our code by removing a face operator Z_f from the set of stabilizers. Thus we perform some initial cycles to put the system into a ground state $|g \rangle$ (here and in the sequel, we assume that errors are actually corrected and not just detected to simplify our calculations) on which all stabilizers act trivially, and starting with the next round of measurements, we exclude a Z_f operator from the measurements.

Of course, this will enlarge the code space. Specifically, let us take a look at the upper left corner of the figure above. Here we have marked a face f and an operator X_c* coming from a string connecting this face with the rough boundary. Then the boundary of c* consists of one point in the dual lattice (the center of f), and hence every face operator commutes with X_c*, except Z_f which anti-commutes. If we now define our code space to be the space fixed by all the vertex operators X_v and all face operators except Z_f, then X_c* and Z_f map that code space to itself. As c* intersects the boundary of f in one point, Z_f and X_c* anti-commute and therefore define a set of logical Pauli operators, acting on the code space. Thus we have constructed a logical qubit!

Intuitively, removing the face operator Z_f from the set of stabilizers corresponds to poking a “hole” into the surface, i.e. removing the face f and the data qubit in it. But of course we do not change the physical layout of our device at all – all we do is changing the code space and the set of logical Pauli operators. Our original code space, by the way, still exists, but we will tacitly ignore it and work with our new logical qubit.

This construction has a nice physical interpretation in terms of the particle picture that we have introduced in the post on the toric code. Suppose we create a pair of quasi-particles, supported on f and a second face close to the rough boundary. We have seen that we can move these particles by acting with edge operators X_e on them. Thus, we can move the second face on which the particle lives across the rough boundary and now obtain a particle supported on one face only. This is exactly the configuration which is obtained by acting with the logical Pauli X operator of our newly created logical qubit on the ground state, i.e. these logical qubits correspond to pairs of particles where one particle has been “pushed off” the surface!

As usual, this construction has a counterpart in the dual lattice, as shown on the right of of our diagram. The configuration marked in blue consists of a vertex operator X_v and a string c connecting that vertex to the smooth boundary. We can now remove X_v from the stabilizer, and obtain a pair of logical operators X_v and Z_c. This type of logical qubit is called a single X-cut in [2], whereas the first type of qubit considered is a single Z-cut – other authors use the term defects for these logical qubits.

This technique allows us in theory to encode a large number of logical qubits in one surface. However, in practice, the restriction that we need to reach the boundary from each of the faces and vertices that we switch off is restricting our layout options a bit. Fortunately, it turns out that this is not even necessary.

In fact, coming back to the analogy of the quasi-particles, nobody forces us to move the second particle off the surface. To see this, consider the configuration marked in green in the lower part of the diagram above. Here we have removed two stabilizers from the code, the face operator Z_f corresponding to the face on the left hand side, and the face operator Z_f’ corresponding to the face on the right hand side. This will enlarge our code space by a space of dimension four. However, we now gracefully ignore half of that space and instead work with the space spanned by the Pauli operators Z_f and X_c*.

A logical qubit obtained by this construction is called a double Z-cut. Of course, we can again repeat this construction in the dual lattice and obtain a double X-cut (these cuts are also for vegetarians…).

Let’s do the twist – moving and braiding qubits

Again, it is time to recap what we have done so far. We have seen that we can create logical qubits by removing face and vertex operators from the set of stabilizers. We have also seen that we can identify logical Pauli X and Z operators acting on these qubits. We can than, of course, also realize a logical Y as the product ZX. What about other gates? And specifically, what about multi-qubit gates?

It turns out that multi-qubit gates can be realized by moving logical qubits around the surface. To make this term a bit more precise, take a look at the following diagram.

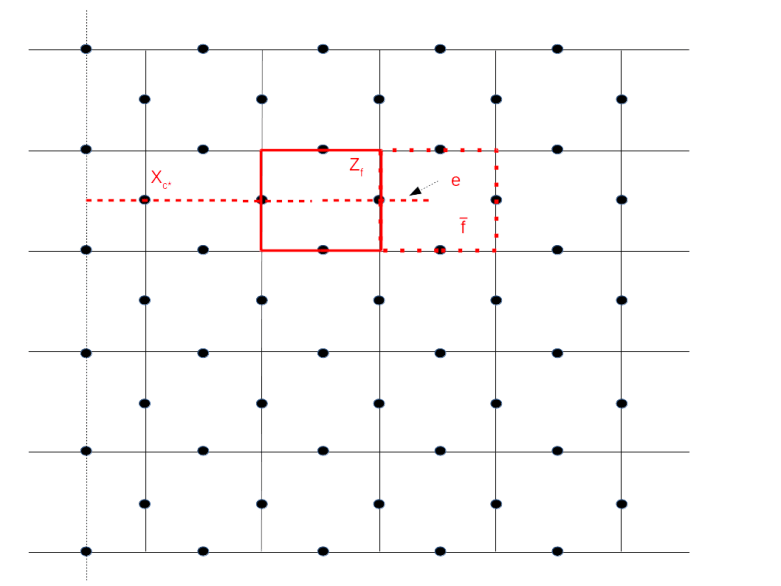

Here we consider a logical qubit described by the Pauli operators X_c* and Z_f, i.e the face operator Z_f has been removed from the set of stabilizers. Adjacent to the face f, there is a face that we denote by $\bar{f}$ . By removing $Z_{\bar{f}}$ (and adding Z_f again to the set of stabilizers), we would obtain a different code space – we can think of this different code space as a deformation of the code space given by removing Z_f.

We want to describe a process that starts with a state in the code space given by Z_f and ends with a state in the code space given by $Z_{\bar{f}}$ . To do this, we manipulate the original state in several steps. First, we measure the Pauli X operator X_e for the physical qubit sitting on the edge e of the dual lattice that connects the centre of f with that of $\bar{f}$ – this is the qubit on which both $Z_{\bar{f}}$ and Z_f act. Let us assume for a moment that the outcome of this measurement is one. Next, we do another measurement – this time we measure Z_f. This will force the system into an eigenstate of Z_f. Let us assume again that the outcome of this measurement is plus one, so that the system is now in the new code space obtained by removing $Z_{\bar{f}}$ instead of Z_f from the stabilizer.

This procedure gives us a mechanism to transform a state in the original code space into a state in the new code space. It is not difficult to see (again I refer to my notes for all the details) that this leaves the logical meaning of the state untouched, i.e. this transformation maps a logical one in the old codespace to a logical one in the new code space and the same for a logical zero (in fact, it turns out that we need to modify the Pauli operators a bit for this to work).

Of course we cannot directly compare the states before and after the transformation as they live in different code spaces. That, however, changes if we move a logical state around like this along a closed loop. Then we will obtain a new state which is living in the original code space and can compare it directly to the original state, as in the diagram below.

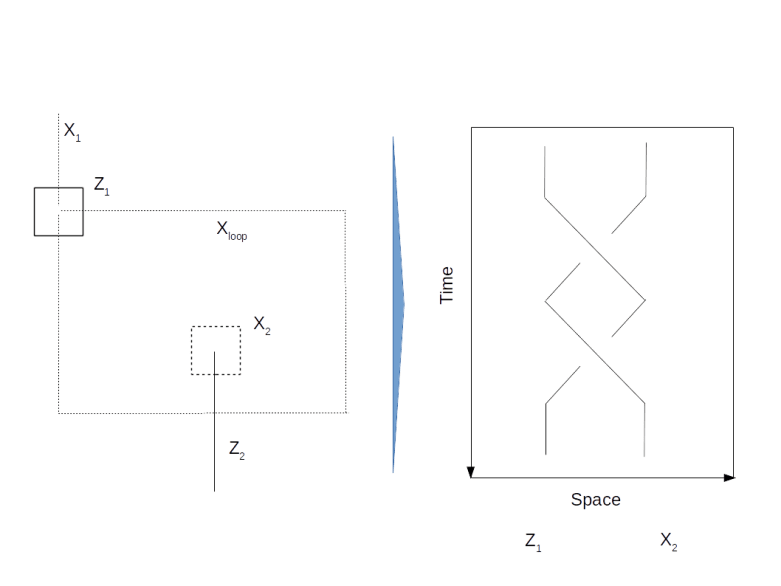

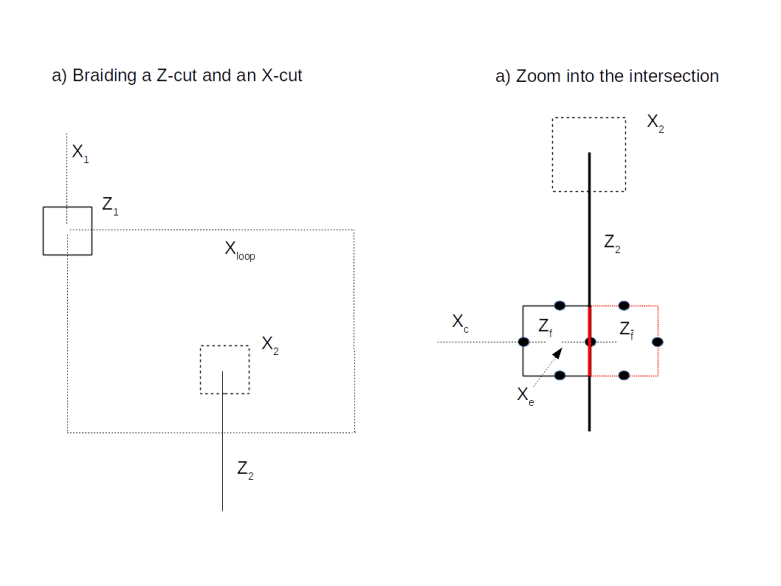

This diagram shows an example where we move a logical qubit generated by a Z-cut once around a logical qubit generated by an X-cut. If we hit upon the intersection between the loop and the X-cut, we pick up an additional transformation. This is a bit like a coordinate transformation – while we move along the loop, we constantly have to adjust our coordinate system, i.e. the logical Pauli operators, to preserve the logical meaning of the qubit. When we reach the initial position, we now have two coordinate system that we can compare, and we find that we have picked up a non-trivial transformation related to the fact that we cannot contract the loop without passing the hole in the surface creating our logical qubit. If you go through all the transformations carefully (or read my notes where I have tried to work out all the details – it is easy to get confused at this point), you will find that the transformation we pick up constitutes a CNOT gate between the two involved qubits! Thus a CNOT can be realized by moving one logical qubit around the second logical qubit once. This is often visualized by a two-strand braid, as illustrated below.

We have also seen that the transformation given by such a braiding operation is governed by terms like intersection numbers and contracting loop, i.e. the transformation is topological in nature – a slightly deformed braid or path gives the same result. Therefore this operation has a certain natural protection against faults, it is topologically protected. Unfortunately, the surface code does not allow a representation of a universal set of quantum gates by braids – doing this requires the use of a more sophisticated physical equivalent called non-abelian anyons. For the surface code, for instance, the T gate cannot be represented by topological operations and needs to be implemented using a technique called gate teleportation.

We will not go into details on this, but try to quickly describe the basic idea which is based on the observation that the circuit

can be used to realize the T gate.

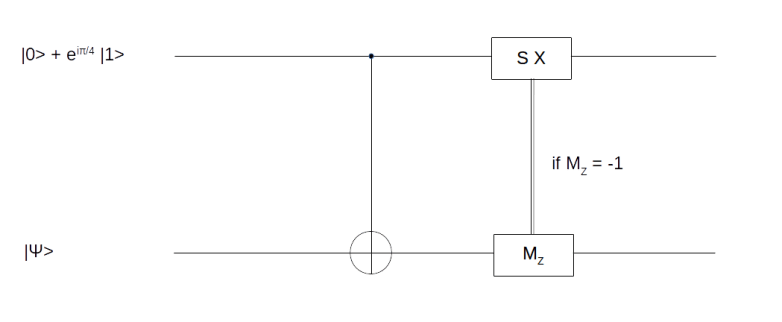

How does this circuit work? The upper qubit is an ancilla qubit that is initialized with the specific state

$|0\rangle + e^{i \frac{pi}{4}} |1\rangle$

by a process called magic state distillation (see [2] for details). Now a short calculation shows that after applying the CNOT gate, the combined system of both qubits will be in the state

$T|\psi \rangle \otimes |0 \rangle + (TX |\psi \rangle) \otimes |1 \rangle$

Thus we have successfully transferred the state $|\psi \rangle$ into the first qubit (this is why this and similar circuits are called gate teleportation circuits), but still have a superposition. To remove this superposition, we nown perform a measurement M_Z on the second qubit. If the outcome of this measurement is one, the first qubit will be in the state $T|\psi \rangle$ and we are done. If not, i.e. if the measurement results in minus one, then the above formula shows that the resulting state in the first qubit will be $TX |\psi \rangle$ . Now one can easily verify that

$TX = X T^*$

and

$T = S T^*$

so that if we apply the sequence SX to the first qubit conditioned on the outcome of the measurement, as indicated in our circuit diagram, the result will in both cases be $T|\psi \rangle$ .

By now, our discussion should have made it clear that the surface codes create a significant overhead. To illustrate this, the appendix of [2] contains an estimation of the number of physical qubits needed to implement Shor’s factoring algorithm for a 2048 bit RSA key. Still, most operations on a surface code are topologically protected, which makes surface codes rather robust. Therefore surface codes remain a promising technology to implement universal fault-tolerant quantum computation, and are one of the most active areas of current research in applied quantum computing.

References

1. S. Bravyi, A. Kitaev, Quantum codes on a lattice with boundary, arXiv:quant-ph/9811052
2. A.G. Fowler, M. Mariantoni, J.M. Martinis, A.N. Cleland, Surface codes: Towards practical large-scale quantum computation, arXiv:1208.0928v2
3. A.G. Fowler, A.M. Stephens, P. Groszkowski, High threshold universal quantum computation on the surface code, arXiv:0803.0272
4. E. Dennis, A. Kitaev, A. Landahl, J. Preskill, Topological quantum memory, arXiv:quant-ph/0110143
5. T.J. Yoder, I.H. Kim, The surface code with a twist, Quantum Vol. 1, 2017 (available online)
6. A. Javadi-Abhari et. al., Optimized Surface Code Communication in Superconducting Quantum Computers, arXiv:1708.09283

Python up an EKS cluster – part I

When you want to try out Kubernetes, you have several choices. You can install Kubernetes in a cluster, install it locally using Minikube, or use one of the Kubernets offerings of the major cloud providers like AWS, GCP or Azure. In this post, we set up a Kubernetes cluster on Amazons EKS platform. As I love Python, we will do this in two steps. First, we will go through the steps manually, as described in the AWS documentation, using the AWS console. Then, we will learn how to use the AWS Python SDK to automate the recurring steps using Python.

A word of caution before we continue: when you follow these instructions, Amazon will charge you for the cluster as well as for the nodes that the cluster uses! So make sure that you stop all nodes and delete the cluster if you are done to avoid high charges! At the time of writing, Amazon charges 20 cents per hour per cluster plus the EC2 instances underlying the cluster, so if you play with this for one our two hours it will not cost you a fortune, but if you forget to shut everything down and let it run, it can easily add up!

What is EKS?

Before we get our hands dirty, let us quickly discuss what EKS actually is. Essentially, EKS offers you the option to set up a Kubernetes cluster in the Amazon cloud. You can connect to this cluster using the standard Kubernetes API and the standard Kubernetes tools. The cluster will manage worker nodes that are running on Amazons EC2 platform, using your EC2 account. The management nodes on which Kubernetes itself is running are not running on your EC2 instances, but are provided by Amazon.

When you set up an EKS cluster, the cluster and your worker nodes will be running in a virtual private network (VPC). You can add load balancers to make your services reachable from the internet. In addition, EKS is integrated with Amazons IAM.

This tutorial assumes that you own an AWS account and that you have followed the instructions in the IAM getting started guide to set up an IAM user with administrator privileges. Please make sure that you are logged into the AWS console with this IAM user, not your root account.

To set up an EKS cluster, several preparational steps are required. First, you will need to set up an IAM role that EKS will use to control EC2 nodes on your behalf. Next, you will need a VPC in which your cluster will run. After these one time preparation steps have been completed, you can create a Kubernetes cluster, add worker nodes and start deployments. In the following, we will go through most of these steps one by one.

One time preparational steps

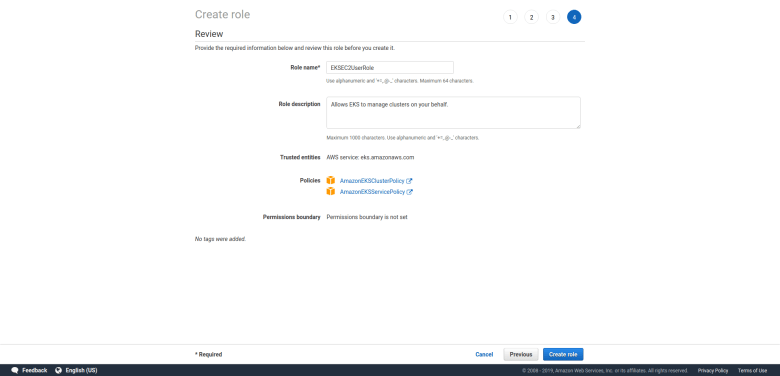

Before you can use EKS, you will need to add an IAM role. To do this, navigate to the EKS console (note that this link will automatically take you to your home region). As described on the Getting started with EKS page, open the IAM management console. In the menu on the left, chose “Roles” and then hit the button “Create role”. Choose “EKS” from the list of services and hit “Next: permissions” and then immediately “Next: tags” and “Next: Review”. As the role name, enter “EKSEC2UserRole” (you could of course choose any name you want, but to make the scripts that we will establish further below work, choose this name for this tutorial). At this point, your screen should look as follows.

Now confirm the setup of the new role with “Create role” and observe how the new role appears in the list in your IAM console.

The next ingredient that we need is the VPC in which the cluster will be running. To set this up, navigate to the CloudFormation page. Hit the button “Create new stack”. Select “Specify an Amazon S3 template URL” and enter https://amazon-eks.s3-us-west-2.amazonaws.com/cloudformation/2019-02-11/amazon-eks-vpc-sample.yaml. Then hit “Next”.

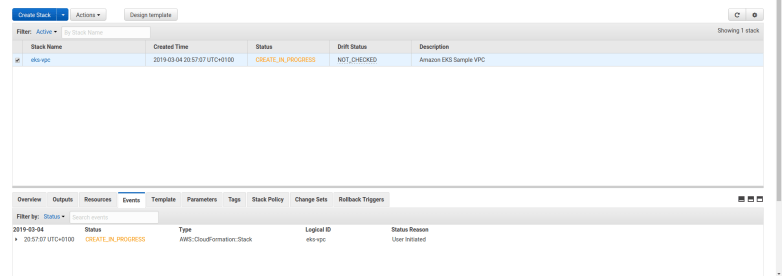

On the next page, you will have to choose a stack name. Again, this can be any name, but let us follow the standard suggestion and call it “eks-vpc”. Then hit “Next” twice and then “Create”. AWS will now create the VPC for you, which might take a few minutes, you should see a screen as below while this is in progress.

Once the stack has been created, open the “Outputs” tab and record the value of SecurityGroups, VpcID and SubnetIds. . In my case, the values are

Key	Value
SecurityGroups	sg-005cf103994878f27
VpcId	vpc-060469b2a294de8bd
SubnetIds	subnet-06088e09ce07546b9, subnet-0e4a8fd662faadab6, subnet-0d88f92baecced563

Next, there is some software that you need on your PC. Please follows the instructions on the Getting started with EKS page to download and install kubectl, the aws-iam-authenticator and the aws CLI your your platform. On my Ubuntu Linux PC, this was done using the steps below.

$ sudo snap install kubectl --classic
$ curl -o aws-iam-authenticator https://amazon-eks.s3-us-west-2.amazonaws.com/1.11.5/2018-12-06/bin/linux/amd64/aws-iam-authenticator
$ curl -o aws-iam-authenticator.sha256 https://amazon-eks.s3-us-west-2.amazonaws.com/1.11.5/2018-12-06/bin/linux/amd64/aws-iam-authenticator.sha256
$ openssl sha1 -sha256 aws-iam-authenticator
$ cat aws-iam-authenticator.sha256 # compare checksums!
$ chmod +x ./aws-iam-authenticator
$ mv aws-iam-authenticator $HOME/Local/bin # replace by your local bin directory
$ pip3 install awscli --upgrade --user

Note that pip will install the AWS CLI in $HOME/.local/bin, so make sure to add this directory to your path. We can now test that all tools have been installed by entering

$ kubectl help
$ aws --version

At this point, the aws tool is not yet hooked up with your credentials. To do this, make sure that you have access to the IAM access key ID and access secret key (that you can generate at the IAM console) for your IAM admin user. Then run

$ aws configure

Enter the keys and the required configuration information. When done, enter

$ aws sts get-caller-identity

to confirm that you now access the AWS API with the admin user.

Creating a cluster and adding worker nodes using the AWS console

After all these preparations – which we of course have to go through only once – we are now in a position to create our first EKS cluster. For that purpose, go to the EKS console and look for the box called “Create EKS cluster”. Enter a cluster name – I have chosen “myCluster” (yes, I am very creative) – and hit the button “Next step”.

This will take you to a configuration page. On this page, you will have to select an IAM role that the cluster will use to operate EC2, a VPC and a security group. Make sure to select those entities that we have set up above! Then hit “Create”.

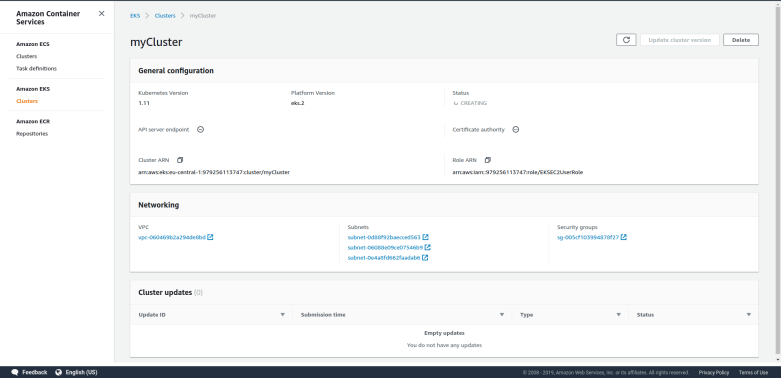

Your cluster will now be created, and you should be taken to the EKS cluster overview page that lists all your clusters along with their status.

Creation of a cluster can take a few minutes, be patient. At some point, the status of your cluster should switch to active. Congratulations, you are now proud owner of a running Kubernetes cluster!

However, this Kubernetes cluster is pretty useless – there are no worker nodes yet, and you are not yet able to communicate with your cluster using kubectl. We will create worker nodes and run services in the next post. To fix the second problem, we will have to hook up the IAM credential chain used by the AWS CLI tool with kubectl. To do this, enter

$ aws eks --region eu-central-1 update-kubeconfig --name myCluster

Once this has completed, you should now be able to user kubectl to connect to your cluster. As an example, run

$ kubectl get svc
NAME         TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   10.100.0.1           443/TCP   6m

Creating a cluster automatically using the Python SDK

Creating a cluster using the EKS console is a bit time consuming, and given the fact that Amazon will charge you for a running cluster, you will want to delete your cluster when you are done and recreate it easily when you need it again. For that purpose, it is very useful to be able to create a cluster using Python.

To do this, let us first delete the cluster again (on the cluster overview page in the EKS console) that we have just created, and compose a Python script that recreates the cluster for us.

First, of course, we need to install the Python SDK Boto3. This is as easy as

$ pip3 install boto3

Note that the SDK uses the same credentials as the AWS CLI, so you still need to go through the steps above to install and configure the AWS CLI.

Our script will accept the name of a cluster (which was myCluster in the example above). It will then need to determine the IAM role, the VPC and subnets and the security group as we did it for the manual setup.

To determine the IAM role, we need an IAM client and use its method get_role to get role details and obtain the role ARN.

iam = boto3.client('iam')
r = iam.get_role(RoleName=eksRoleName)
roleArn = r['Role']['Arn']

Here we assume that the Python variable eksRoleName contains the name of the role that we have created as part of our one time setup.

Getting the VPC ID, the subnet IDs and the security group is a bit more tricky. For that purpose, we will refer back to the CloudFormation stack that we have created as part of our one-time setup. To get the VPC ID and the security group, we can use the following code snippet.

cloudFormation = boto3.client('cloudformation')
r = cloudFormation.describe_stack_resources(
       StackName = "eks-vpc",
       LogicalResourceId="VPC")
vpcId = r['StackResources'][0]['PhysicalResourceId']
r = cloudFormation.describe_stack_resources(
       StackName = "eks-vpc",
       LogicalResourceId="ControlPlaneSecurityGroup")
secGroupId = r['StackResources'][0]['PhysicalResourceId']

Once we have this, we can easily obtain the subnet IDs using the EC2 interface.

ec2 = boto3.resource('ec2')
vpc = ec2.Vpc(vpcId)
subnets = [subnet.id for subnet in vpc.subnets.all()]

We now have all the configuration data that we need to trigger the actual cluster setup. For that purpose, we will create an EKS client and call its method create_cluster, passing the information that we have collected so far as arguments. We then create a waiter object that is polling until the cluster status changes to “Active”.

eks = boto3.client("eks")
response = eks.create_cluster(
               name="myCluster",
               version="1.13",
               roleArn = roleArn,
               resourcesVpcConfig = {
                 'subnetIds' : subnets,
                 'securityGroupIds' : [secGroupId]})
waiter = eks.get_waiter("cluster_active")
waiter.wait(name="myCluster")

When this call completes, our cluster is created. However, we still have to update our Kubernetes configuration file. Of course, we could simply call the AWS CLI, but doing this in Python is more fun. The configuration file that the AWS CLI creates is stored in your home directory, in a subdirectory called kube, and formatted in the simplified markup language known as YAML. Inspecting this file, it is not difficult to translate this into a structure of Python dictionaries and lists, which contains four cluster-specific pieces of data.

The cluster endpoint – this is the URL used by kubectl to submit an API call
The Amazon resource name of your cluster (ARN)
the cluster name
a certificate used by kubectl to authorize requests

This information can be retrieved using the method describe_cluster of the EKS client and assembled into a Python data structure. We can then use the Python module yaml to turn this into a string in YAML format, which we can then write to disk. I will not go into detail, but you might want to take a look at the complete script to create a cluster on my GitHub page.

We are now able to automatically create a Kubernetes cluster and connect to it using kubectl. In the next post, we will add the meat – we will learn how to spin up worker nodes and deploy our first pods.
