Networking basics – Ethernet

In the previous post in this series, we have looked at the layered architecture of a typical network stack. In this post, we will dive into the lowest layer of a typical TCP/IP implementation – the Ethernet protocol.

The term Ethernet originally refers to a set of standards initially developed in the seventies by Xerox and then standardized jointly with DEC and Intel (see for instance this link to the original specification of what became knowns as Ethernet II). These standards describe both the physical layer (PHY), i.e. physical media, encoding, voltage levels, timing and so forth, as well as the data link layer that specifies the layout of the messages and the handling of collisions.

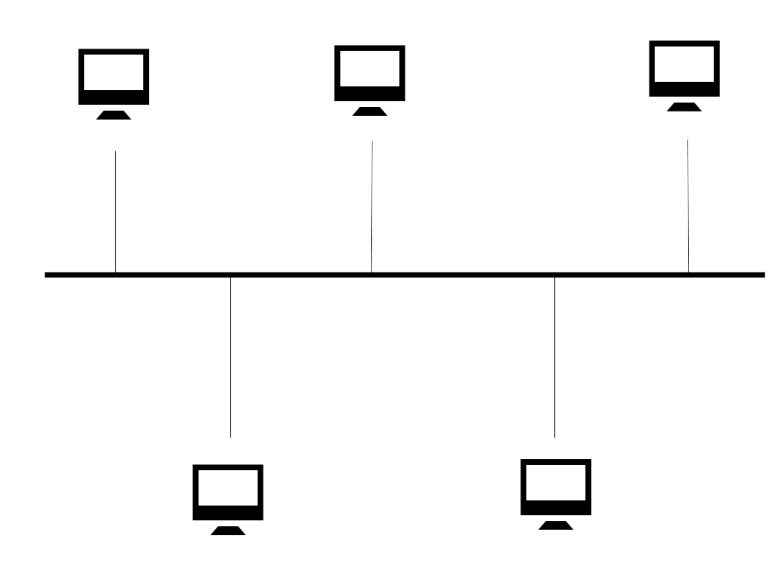

To understand how Ethernet works, it is useful to look at a typical network topology used by the early versions of the Ethernet standard. In such a setup, several hosts would be connected to a common medium in a bus topology, as indicated in the diagram below.EthernetBusTopology


Here, a shared medium – initially a coaxial cable – was used to transmit messages, indicated by the thick horizontal line in the diagram. Each station in the network is connected to this cable. When a station wants to transmit a message, it translates this message into a sequence of bits (Ethernet is inherently a serial protocol), checks that no other message is currently in transit and forces a corresponding voltage pattern onto the medium. Any other station can sense that voltage pattern and translate the message back.

Each station in the network is identified by a unique address. This address is an 48 bit number called the MAC address. When a station detects an Ethernet message (called a frame) on the shared medium, it extracts the target address from that frame and compares it to its own MAC address. If they do not match, the frame is ignored (there are a few exceptions to this rule, as there are broadcast addresses and a device can be operated in promiscuity mode in which it will pick up all frames regardless of their target address).

There is one problem, though. What happens if several stations want to transmit messages at the same time? If that happens, the signals overlap and the transmission is disturbed. This is called a collision. Part of the Ethernet protocol is a mechanism called CSMA/CD (carrier sense multiple access with collision detection) that specifies how these situations are detected and handled. Essentially, the idea is that a a station that detects a collision will wait for a certain random time and simply retry. If that fails again, it will again wait, using a different value for the wait time. After a certain number of failed attempts, the transmission will be aborted.

This mechanisms works a bit like a conference call. As you cannot see the other participants, it is very hard to tell whether someone wants to speak. So you first wait for some time, and if nobody else has started to talk, you start. If there is still a collision, both speakers will back off and wait for some time, hoping that their next attempt will be successful. Given the random wait times, it is rather likely that using this procedure, one of the speakers will be able to start talking after a few attempts.

This is nice and worked well for smaller networks, but has certain disadvantages when striving for larget networks with higher transfer rates. First, collision resolution consumes time and slows down the traffic significantly if too many collisions occur. Second, communication in this topology is half-duplex: every station can either transmit or receive, but not both at the same time. Both issues are addressed in more modern networks where a switch-based topology is used.

A switch or bridge is an Ethernet device that can connect several physical network segments. A switch has several ports to which network segments are connected. A switch knows (in fact, it learns that information over time) which host is connected to which port. When an Ethernet frame arrives at one of the ports, the switch uses that information to determine the port to which the frame needs to be directed and forwards the frame to this port.

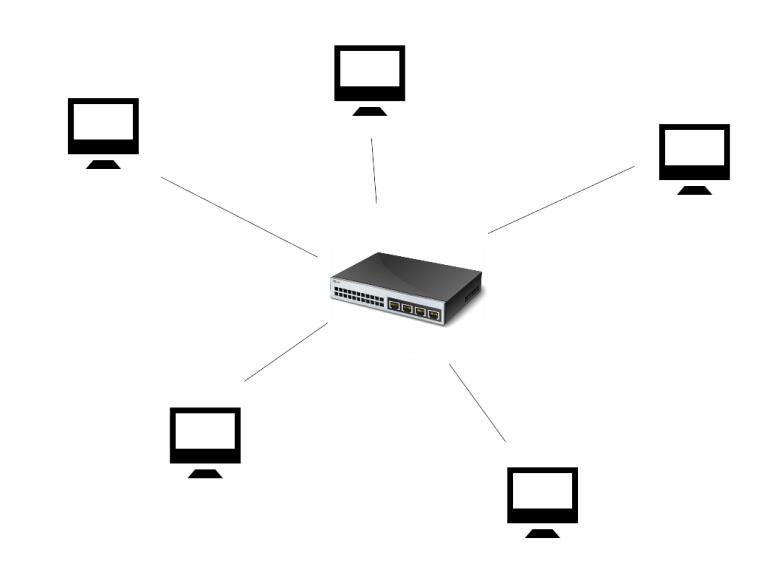

EthernetSwitchedTopology

In such a topology, collisions can be entirely avoided once the switch has learned which device is behind which port. Each station is connected to the switch using a twisted pair cable and can talk to the switch in full duplex mode (if the connection allows for it), i.e. receive and transmit at the same point in time.  Most switches have the ability to buffer a certain amount of data to effectively serialize the communication at the individual ports, so that collisions can be avoided even if two frames for the same destination port arrive at the switch simultaneously. This sort of setup is more expensive due to the additional costs for the switches, but has become the standard topology even in small home networks.

Having looked at the physical realization of an Ethernet network, let us now try to observe this in action.  For these tests, I have used my home PC running Ubuntu Linux 16.04 which is connected to a home network via an Ethernet adapter.  This adapter is known to the operating system as enp4s0 (on older Ubuntu versions, this would be eth0).

First, let us collect some information about the local network setup using the tool ifconfig.

$ ifconfig enp4s0
enp4s0    Link encap:Ethernet  HWaddr 1c:6f:65:c0:c9:85
          inet addr:192.168.178.27  Bcast:192.168.178.255  Mask:255.255.255.0
          inet6 addr: fe80::dd59:ad15:4f8e:6a87/64 Scope:Link
          UP BROADCAST RUNNING MULTICAST  MTU:1500  Metric:1
          RX packets:48431 errors:0 dropped:0 overruns:0 frame:0
          TX packets:37871 errors:0 dropped:0 overruns:0 carrier:0
          collisions:0 txqueuelen:1000
          RX bytes:46537519 (46.5 MB)  TX bytes:7483354 (7.4 MB)

Here we see that our network device enps4s0 is an Ethernet device with the MAC address 1c:6f:65:c0:c9:85. Here the 48 bit MAC address is printed as a sequence of 6 bytes, separated by colons.

Now open a terminal, become root and enter the following command:

tcpdump -i enp4s0 -xxx

This will instruct tcpdump to dump packages going over enp4s0, printing all details including the Ethernet header (-xxx). On another terminal, execute

ping 192.168.178.1

Then tcpdump will produce the following output (plus a lot of other stuff, depending on what you currently run in parallel):

21:28:18.410185 IP your.host > your.router: ICMP echo request, id 6182, seq 1, length 64
0x0000: 0896 d775 7e80 1c6f 65c0 c985 0800 4500
0x0010: 0054 e6a3 4000 4001 6e97 c0a8 b21b c0a8
0x0020: b201 0800 4135 1826 0001 d233 de5a 0000
0x0030: 0000 2942 0600 0000 0000 1011 1213 1415
0x0040: 1617 1819 1a1b 1c1d 1e1f 2021 2223 2425
0x0050: 2627 2829 2a2b 2c2d 2e2f 3031 3233 3435
0x0060: 3637
21:28:18.412823 IP your.router > your.host: ICMP echo reply, id 6182, seq 1, length 64
0x0000: 1c6f 65c0 c985 0896 d775 7e80 0800 4500
0x0010: 0054 0b2c 0000 4001 8a0f c0a8 b201 c0a8
0x0020: b21b 0000 4935 1826 0001 d233 de5a 0000
0x0030: 0000 2942 0600 0000 0000 1011 1213 1415
0x0040: 1617 1819 1a1b 1c1d 1e1f 2021 2223 2425
0x0050: 2627 2829 2a2b 2c2d 2e2f 3031 3233 3435
0x0060: 3637

Let us examine this output in detail. Each packet printed by tcpdump is an Ethernet frame. Every frame starts with an Ethernet specific part called the Ethernet header followed by a part determined by the higher layers of the protocol stack that we will not discuss in this but in later posts.

The first Ethernet frame starts with the destination MAC address 08:96:d7:75:7e:80 which in this case is the MAC address of my router (you can figure out the MAC address of your router using the `arp` command).

The next six bytes in the frame contain the source MAC address 1c:6f:65:c0:c9:85, i.e. the MAC address of my network card in this case. Note that this matches the output of `ifconfig` displayed above.

The next two bytes of the Ethernet frame are still part of the header and are called the ethertype. This field holds a number that specifies the higher layer protocol to which the data in the Ethernet frame refers. This field is not used by the Ethernet protocol itself, but is relevant for an operating system as it determines to which protocol stack the content of the Ethernet frame is routed for further processing. In our case, the ethertype is 0x800, indicating that this is an IP request.

The next bytes starting with the value 0x45 form the data part of the Ethernet frame and contain the actual payload.

In addition to the data displayed by tcpdump, there are additional bytes at the start and end of each Ethernet frame that are handled by the network card and usually not visible to applications. Preceding the Ethernet header, there is a so called preamble which is a fixed 56 bit pattern designed to allow the stations to synchronize their clock. The preamble is followed by an 8-bit pattern called the start frame delimiter (SDF), which is again a fixed value indicating the start of the actual frame (in some sources, the SFD is considered to be part of the preamble). These bits are then followed by the fields described above:

  • Destination MAC address
  • Source MAC address
  • Ethertype
  • Data

Finally, the Ethernet frame ends with a checksum called Frame check sequence which is used to detect transmission errors.

This simple structure of an Ethernet frame is virtually unchanged compared to the original Ethernet II specification. However, over time, some extensions and protocol variations have been defined. The most notable one is VLAN tagging according to the IEEE 802.1Q standard.

A VLAN or virtual LAN is a technology to split a single Ethernet network into logically separated areas. One way to do this is to program switches in such a way that they assign stations and the corresponding ports to different virtual LANs and allow traffic to flow only within each VLAN. However, this simple implementation fails if the network spans more than one switch. To support these cases as well, an Ethernet frame can contain an optional field – the VLAN tag – that contains the ID of the virtual LAN in which the frame is supposed to be distributed. This tag is placed right after the ethertype. To indicate its presence, the dummy ethertype 0x8100 is used, followed by the VLAN tag and the actual ethertype.

This concludes our short introduction to the Ethernet protocol. In the next post, we will discuss the network layer and the IP protocol before we then move on to ARP and routing.
